SIERPINSKI JAVAFX
A Sierpinski triangle Algorithm
Begin with an equilateral triangle, which is considered to be a Sierpinski fractal of order 0.
Connect the midpoints of the sides of the triangle of order 0 to create a Sierpinski triangle of order 1
Leave the center triangle intact. Connect the midpoints of the sides of the three other triangles to create a Sierpinski triangle of order 2
I will just show the code of drawing the pattern.
The sourceCode
Line l1,l2,l3;
Point2D p1,p2,p3;
AnchorPane root;
@Override
public void start(Stage primaryStage) {
root = new AnchorPane();
Scene scene = new Scene(root, 300, 250);
p1=new Point2D((scene.getWidth()-10)/2,10);
p2=new Point2D(10,scene.getHeight()-10);
p3=new Point2D((scene.getWidth()-10)-10,scene.getHeight()-10);
run(3,p1,p2,p3);
primaryStage.setTitle("Sierpinski");
primaryStage.setScene(scene);
primaryStage.show();
}
public void run(int order,Point2D p1,Point2D p2,Point2D p3){
if(order==0){
l1=new Line(p1.getX(),p1.getY(),p2.getX(),p2.getY());
l2=new Line(p1.getX(),p1.getY(),p3.getX(),p3.getY());
l3=new Line(p2.getX(),p2.getY(),p3.getX(),p3.getY());
root.getChildren().addAll(l1,l2,l3);
}else{
Point2D p12=midpoint(p1,p2);
Point2D p23=midpoint(p2,p3);
Point2D p31=midpoint(p3,p1);
l1=new Line(p1.getX(),p1.getY(),p2.getX(),p2.getY());
l2=new Line(p1.getX(),p1.getY(),p3.getX(),p3.getY());
l3=new Line(p2.getX(),p2.getY(),p3.getX(),p3.getY());
root.getChildren().addAll(l1,l2,l3);
run(order-1,p1,p12,p31);
run(order-1,p12,p2,p23);
run(order-1,p31,p23,p3);
}
}
public Point2D midpoint(Point2D pp1, Point2D pp2) {
return new Point2D((pp1.getX() + pp2.getX()) / 2, (pp1.getY() + pp2.getY()) / 2);
}
And with a little more styling .i.e Transition,stroke width, and different fills.

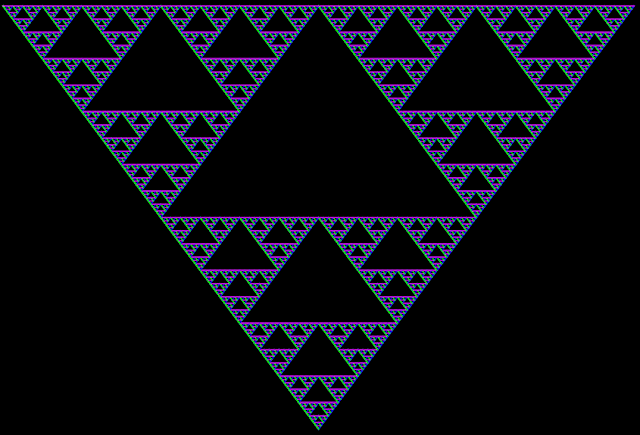

Results
Main
Colorfull Samples
